Cryostat Control Electronics

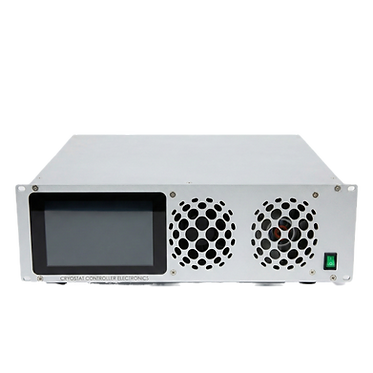

Streamline your cryogenic laboratory setup with the NanoMagnetics NMI-CCC-120, a comprehensive all-in-one solution designed for precision and efficiency. This unit integrates a Bipolar Superconducting Magnet Power Supply, a 4-Channel Temperature Controller, and a 6-Channel Temperature Monitor into a single package.
Designed for demanding research environments, the NMI-CCC-120 features universal power input (90-240Vac) and forced air cooling, all housed in a robust 3U 19" rack-mountable case.
Precision Bipolar Superconducting Magnet Power Supply
At the core of the NMI-CCC-120 is a high-performance Bipolar Superconducting Magnet Power Supply. Engineered for stability and safety in cryogenic applications, this power supply features:
High Current Output: Delivers a ±120 A current source.
Exceptional Precision: Operates with 0.1 mA resolution for fine-tuned control.
Integrated Safety: Includes built-in quench protection to safeguard your equipment.
Switch Heater Control: Features a dedicated Persistent Current Switch (PCS) heater.
4-Channel Cryogenic Temperature Controller
The NMI-CCC-120 serves as a robust Temperature Controller, providing the flexibility needed for precise thermal management in low-temperature physics and materials science.
Independent Control: Features 4 independent PID loops.
Powerful Heating: Each loop supports 50-Watt heaters to ensure effective temperature regulation.
Sensor Compatibility: Supports both resistance and diode thermometers with calibration tables.
Signal Integrity: Utilizes 24-bit ADCs and adjustable constant current/voltage excitation for high-fidelity signal acquisition.
High-Fidelity 6-Channel Temperature Monitor
Monitor your cryogenic systems with confidence using the integrated 6-Channel Temperature Monitor. This independent monitoring system allows for comprehensive thermal mapping of your cryostat.
Versatile Sensing: Supports resistance and diode thermometers with full calibration table support.
Advanced Measurements: Features current reversal for RTDs to improve accuracy.
Precision Data: Equipped with 24-bit ADCs and adjustable constant current or voltage excitation.
Integrated Instrumentation and Software Control
The NMI-CCC-120 goes beyond standard control with additional features like a Charcoal Heater and a Wide Range Pressure Gauge Controller (1E-9 to 1E+3 mbar) supporting Pirani and MEMS interfaces.
Seamless Connectivity & Interface:
Touchscreen Control: A 7" color touchscreen panel allows for intuitive manual operation.
Remote Operation: Connect easily via USB 2.0 using the included dedicated Windows-based system logging software.
Custom Automation: Fully automate your experiments using the provided API with drivers for LabView and Python.
Future-Proof: Benefit from free software upgrades for the lifetime of the product.
